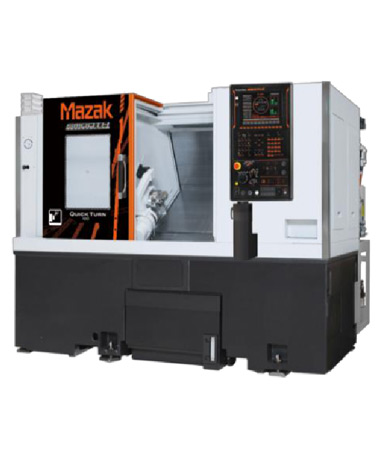

| MAZAK QUICK TURN 100 SG 300 mm BED (UNIVERSAL) | VALUES | |
| MACHINE CAPACITY | Chuck size main spindle | 6 " (inch) |
| Maximum swing | 580 mm | |
| Max m/c dia (collet chuck/5" hydraulic chuck) | 280 mm | |
| Bar work capacity main spindle | 52 mm | |
| MAIN SPINDLE | Rotating speed maximum | 6,000 min-¹ |
| TURRET | Number of tools | 12 |
| FEED AXES | Travel (X axis) | 200mm |
| Travel (Z axis) | 340mm | |
| MAZAK QUICK TURN 150 SG 500 mm BED (UNIVERSAL) | VALUES | |
| MACHINE CAPACITY | Chuck size main spindle | 8 " (inch) |
| Maximum swing | 580 mm | |
| Max m/c dia (collet chuck/5" hydraulic chuck) | 330 mm | |
| Bar work capacity main spindle | 52 mm | |
| MAIN SPINDLE | Rotating speed maximum | 5,000 min-¹ |
| TURRET | Number of tools | 8 |
| FEED AXES | Travel (X axis) | 200mm |
| Travel (Z axis) | 560mm | |

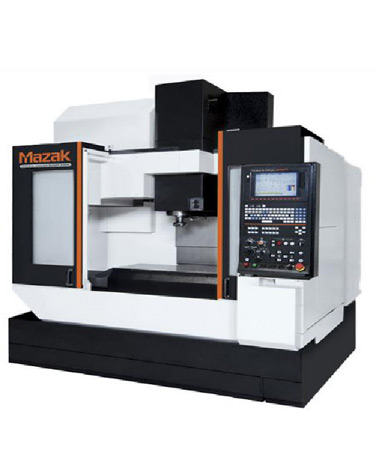

| MAZAK VCN 430 B | VALUES | |
| Capacity | Table Right/Left | 35.430 in / 900 mm |
| Table Longitudinal | 16.930 in / 430 mm | |
| Spindle | Spindle Taper | 40 |
| Maximum Speed | 12000 rpm | |
| Magazine | Number of Tools | 30 |
| FEED AXES | Travel (X axis) | 22.05 in / 560 mm |
| Travel (Y axis) | 16.93 in / 430 mm | |
| Travel (Z axis) | 20.08 in / 510 mm | |

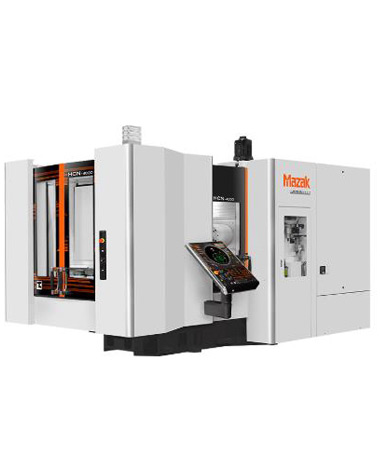

| MAZAK HMC/HCN4000 SPECIFICATION | VALUES | |
| Capacity | Pallet Size | 15.750 in / 400 mm |
| Maximum Workpiece Height | 35.430 in / 900 mm | |
| Spindle Taper | 40 | |
| Magazine | Number of Tools | 40 |
| FEED AXES | Travel (X axis) | 22.05 in / 560 mm |
| Travel (Y axis) | 25.20 in / 640 mm | |
| Travel (Z axis) | 25.20 in / 640 mm | |

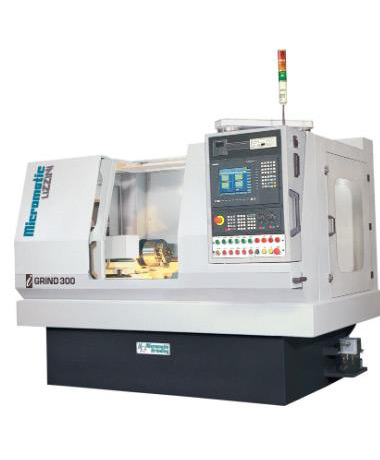

| MICROMATIC HD GRINDER SPECIFICATIONS | VALUES |
| Max. Rotating Diameter of component | 300 mm |
| Max. Grinding Diameter | 200 mm |
| Min. Grinding Diameter | 5 mm |
| Max. Grinding Length | 150 mm |
| Max. Component Weight | 50 Kg |
| Travel (Y axis) | 25.20 in / 640 mm |
| Travel (Z axis) | 25.20 in / 640 mm |
